POT MAGNETS are available at our eCommerce Website we can supply you from one quantity to multiple quantities in bulk. Neodymium Magnets are strongest magnets & special type of steel magnets. They are designed for clamping directly onto a steel surface; they are made from a large magnet encased within a steel shell. They are magnetic on one face only, creating a solid clamping force. However, they should not be used to attract other magnets or attract through a gap as they have a shallow depth of magnetic field. It can also be supplied with hooks and eye bolt attachments, ideal for hanging a variety of items.
How does a neodymium pot magnets differ to a regular neodymium magnet?
Magnetism is confined to one face only, where it is concentrated to give the maximum holding force possible for the size of the magnet so they are more resistant to chipping and cracking as they are protected by their steel shell.
Type A – Countersunk Pot Magnet
are our countersunk pot magnets in a steel pot and have a centered borehole and countersink. Hence, you can be screwed into the wall or ceiling with an appropriate countersunk screw and you can attach various objects.
Type B – Pot magnet with bore/round cub
are also known as round base magnets or cup magnets & even Pot magnet. They are made of neodymium permanent magnets assembled inside steel cups. Most of the round magnetic bases use neodymium rare earth magnets or ceramic magnets. The benefits of the cup magnets are strength and durability. The holding strength of the round base magnets is much more powerful than the magnets built in the same round base magnets since the magnetic circuit design. The steel cups protect the magnets from direct hit so to have a much longer service life.
Type C – Pot magnet with external thread
is a strong neodymium disc built in a steel pot. Not only will the steel pot keep the magnet safe from damages but also the magnetic force is higher! Because of the steel there is only one side that can be attached. These magnets have a threaded rod that makes every mounting extremely easy! You can mount them using a hexagon nut for mounting. In this way you will be able to mount them directly to your machines or devices.

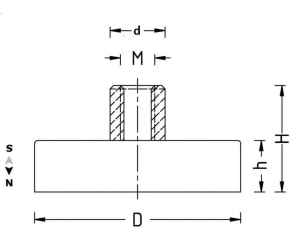

Type D – Pot magnet with Internal thread
is a strong neodymium disc built in a steel pot. Not only will the steel pot keep the magnet safe from damages but also the magnetic force is higher! Because of the steel there is only one side that can be attached. The optimal surfaces are steel and iron. These magnets have a threaded road, also known as tapped hole that can be used together with every kind of threaded / tapped screw.
Type E – Pot magnet with hook
neodymium hook magnets or magnetic hook with hooks consist of a neodymium alloy and are embedded in a steel pot, which increases the adhesive force that is lead down into the surface. We carry small hooks with a diameter of 10 mm as well as large ones with 75 mm. The latter can hold a maximum weight of 162 kg when used on the ceiling (e.g. steel beam). Practical & and flexible, Hold all kinds of objects up to 162 kg, Many different sizes and adhesive forces, Silver (nickel-coated)
Type F –Pot magnet with eyelet hook
Type G – Rubber coated magnet with Internal thread
rubber coated pot magnets with internal thread have a metrical internal thread and can be screwed together with objects having a suitable external thread. The rubber coating protects delicate surfaces from scratches and at the same time increases the load capacity in shear direction. The rubber protects the magnet from occasional moisture and splashes. Permanent outdoor use, however, may lead to the formation of rust. Our ferrite pot magnets, on the other hand, are rust-proof.
Please note: This pot magnet has a full-length thread, requiring extra care when threading screws, hooks and the like to prevent damage to the rubber coating.
Type H – Rubber coated magnet with External thread
These rubberized pot magnet with threaded peg work great on delicate surfaces. The rubber coating not only protects from scratches but also increases the weight capacity in shear direction and makes them slip-resistant.
How Pot Magnet pulling force measure?
All the strength of fishing magnets are the vertical magnetic pull-force which make the magnet pull away from the 20mm thickness steel plate of a tensile tester under ideal condition. (80mm/min)
What is pot magnet used for?
heavy duty holding, mounting, and fixing purposes in workstations, classrooms, offices, warehouses, for pop displays, as retrieval magnets and many more..
NOTE: Product Images are shown for illustrative purposes only and may differ from actual product
