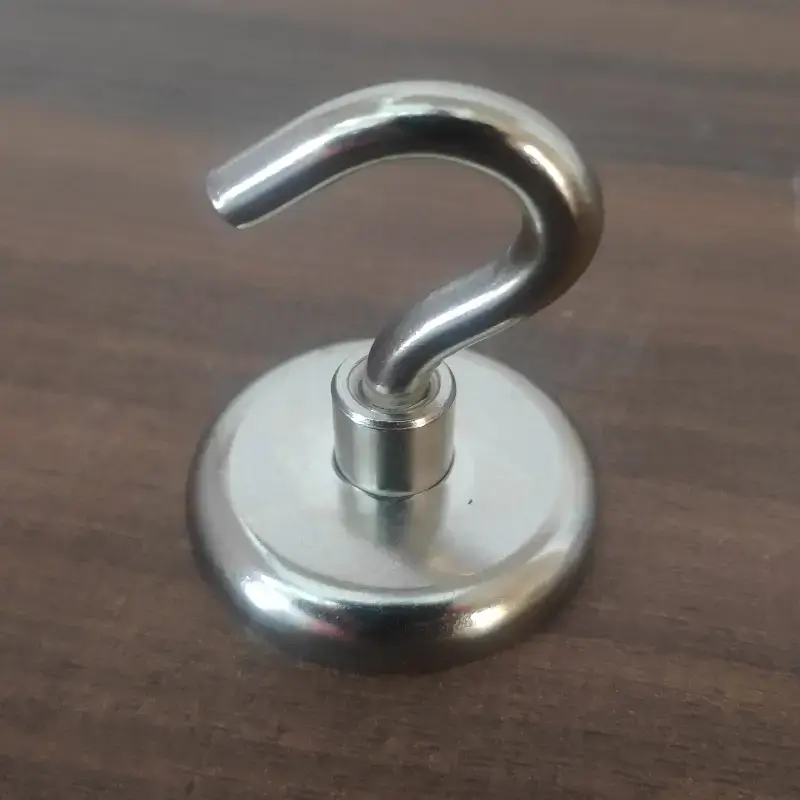

Neodymium Hook Magnet PME-E36 – Strong Force 40kg

Description

Neodymium Hook Magnet PME-E36 – Strong Force 40kg

• Model No.: PME-E36
• Pot Diameter D: 36mm
• Neck Diameter d: 10.0mm
• Pot Height h: 8mm
• Total Height without hook H1: 17mm
• Total Height with hook H: 45mm
• Thread M: M6
• Tolerance: ±0.1mm
• Material: NdFeB Magnet
• Coating: Nickel (Ni)
• Steel: Q235
• Magnetized Grade: N35
• Power Strength: 40.0 Kg
• Max. Working Temperature: 80°C
• Net Weight: 65.0 gram

With these strong magnetic hooks, you can conveniently attach office and kitchen utensils, clothing, etc. to ferromagnetic surfaces. The full adhesive force of these magnetic hooks unfolds at the bottom side of thick steel beams, when the weight is applied downwards. When attached to a wall, they can hold noticeably less weight.

All the strength of pot magnets are the vertical magnetic pull-force which make the magnet pull away from the 20mm thickness steel plate of a tensile tester under ideal condition. (80mm/min)

NOTED: Product Images are shown for illustrative purposes only and may differ from actual product.
