Strong PML-600 Permanent Lifting Magnet

Description

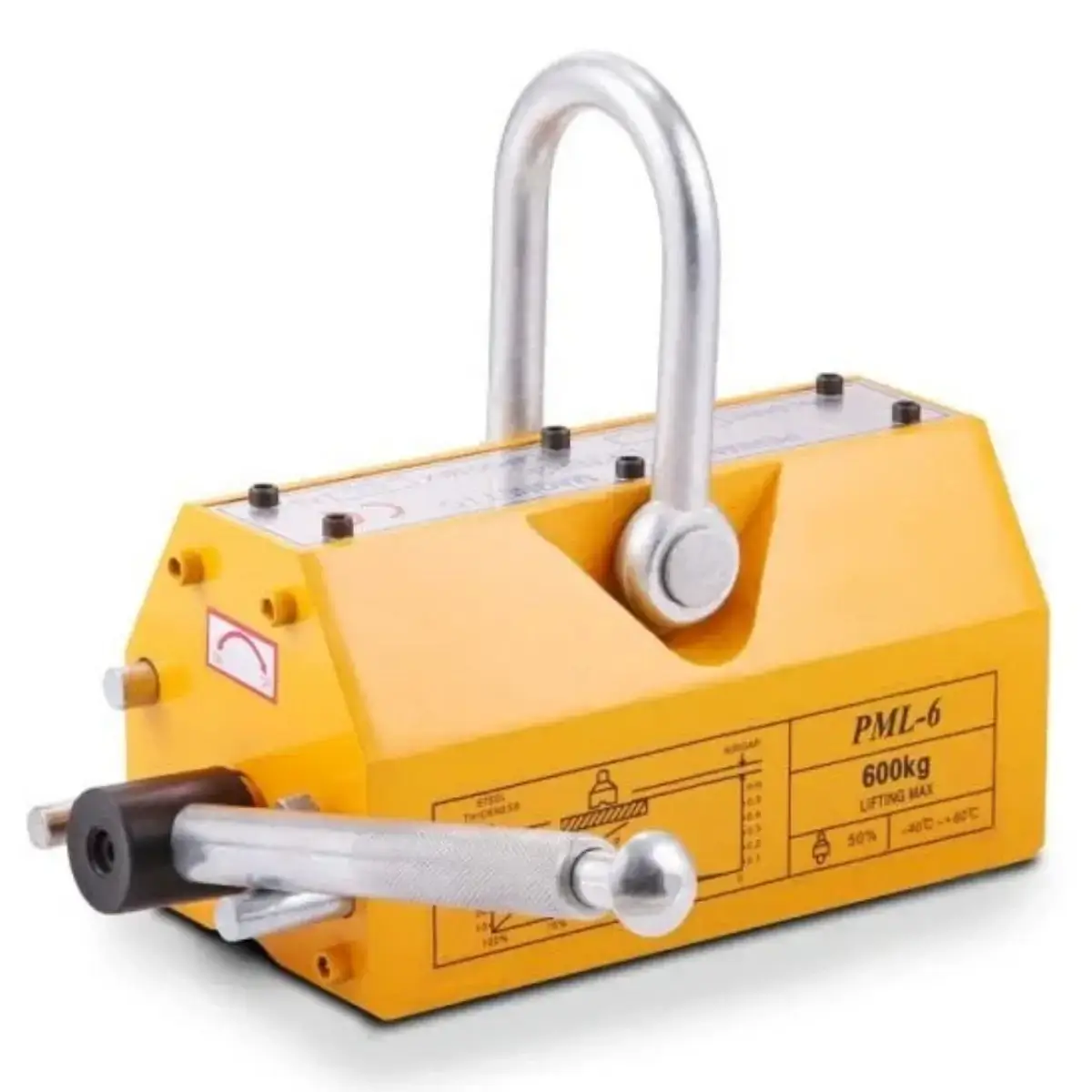

PML-600 Permanent Lifting Magnet

• Model: PML-600
• Load Capacity: 600kgs
• Max Pull of Strength: 1500KgF
• Dimension: 210 x 115 x 116mm
• Length of Handle: 230mm
• Min Plate Thickness: > 15mm
• Job Size Range: (L)2500 x (W)2000 x (Ø)50-300
• Net Weight: 19kgs
• Gross Weight: 21Kgs
• Temperature: -40 ℃~80 ℃

600kg lifting magnet is mainly used to lift steel plates, blocks, press Moulds etc. and load / unload in machines during handling operation. They can hoist moving iron blocks and other magnetic material. They are easy to operation and safe to handle and hence are widely used as lifting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working condition and increase your working efficiency.

• Zero electricity required
• Forged hook for high mechanical strength and durability
• Precision machined assembly block in a single piece to enhance efficiency
• Designed for safety and lightweight
• Full proof locking system with an easy to use “on” and “off” lever
• 3 times rated capacity factor of safety to meet the safety standards as per international standards for under the hook devices
• No Maintenance and Operating cost
• No damage to the workpiece being lifted
• Very Compact and durable

PML-600 Permanent Lifting Magnet have a strong magnetic field path produced by NdFeB magnetic materials. “On” and “Off” of the magnetic path is controlled by turning the lever manually. There are shackles on the top of Magnetic Lifter for lifting.

NOTED: Product Images are shown for illustrative purposes only and may differ from actual product.
