TES1-04904 (20x20mm)

Description

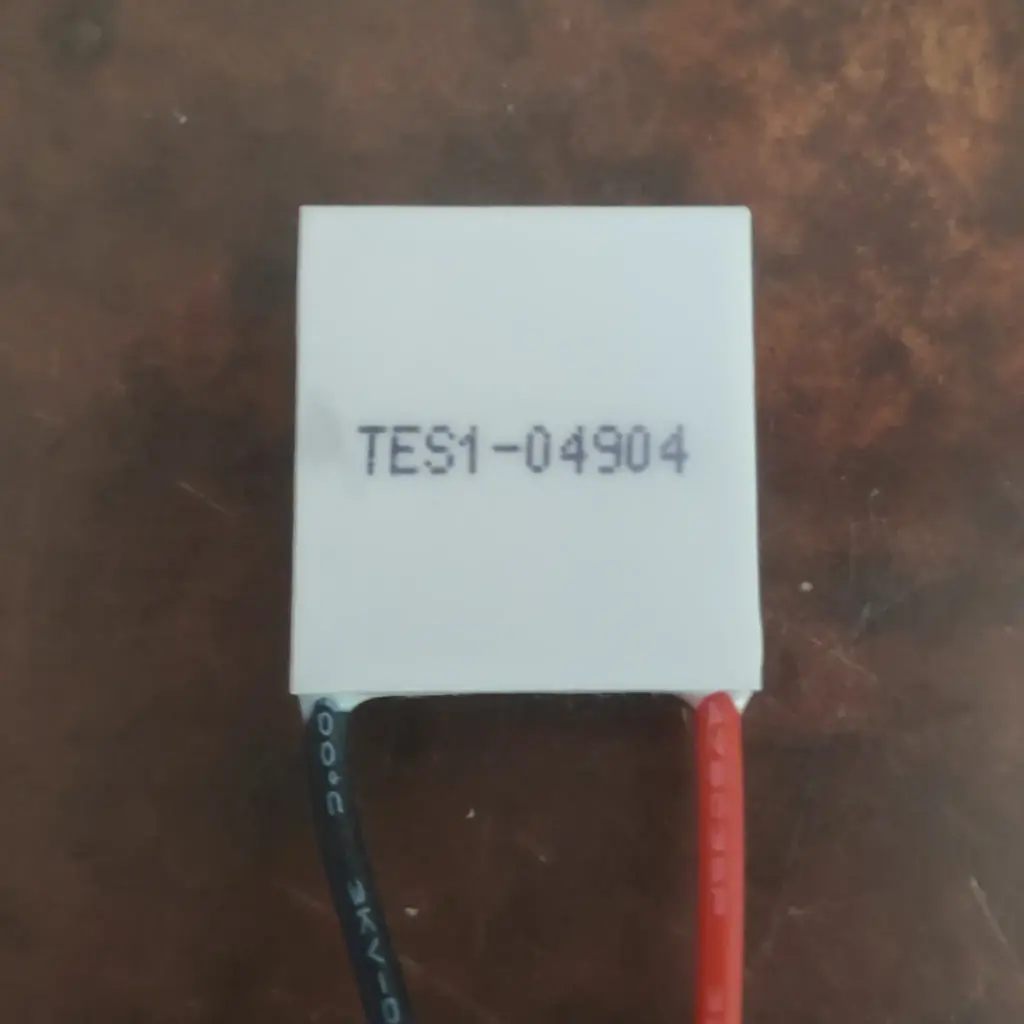

TES1-04904  Thermoelectric Cooler Peltier Module

• Model: TES1-04904
• Size: 20*20*3.05±0.1 (L*W*H)
• Voltage: 5VCD
• Umax (V): 5.9VDC
• Imax (A): 04Amp
• DTmax (ºC) ≥67℃
• Element Couple: 67 pairs
• QCMax (W): 13.72W
• resistance (Ohms): 1.15-1.18Ω
• Color: Main white
• Operating temperature:  -50+138℃
• Power Cord Length: Lead Length 300 ± 5mm Standard Wire Single Head 4mmTinned
• Certificate : ISO9001, RoHS
• Packaging technology: around the standard 704 silicone rubber seal

TES1-04904 Thermoelectric Cooler Peltier Module is Precise temperature control, High effective cooling and efficiency, Compact structure, small in size, light in weight, high Performance, No moving parts, no noise, and solid-state,

Usage

Use suitable heat sink, fan and power on the module. Use a good quality heat sink (such as 5-8 Kgs or 300x300x90mm) with thermal paste. Use a Switch mode Power Supply 12V DC to power the Peltier Module, observe polarity when powering the module.
